Jinseed Geosynthetics Solution

HDPE Geomembrane Liner Manufacturer

Factory-direct HDPE liners for landfill, mining and water containment. Get a quote matched to your thickness, surface and delivery destination, with roll dimensions and applicable test documents.

Request a quote by email Chat on WhatsApp

Have a BOQ or drawing? Email it for a project quotation.

Product thickness range: 1.0–3.0 mm
Roll widths: Up to 8.0 m
Surface options: Smooth / Textured

Your HDPE liner manufacturer in Guangdong.

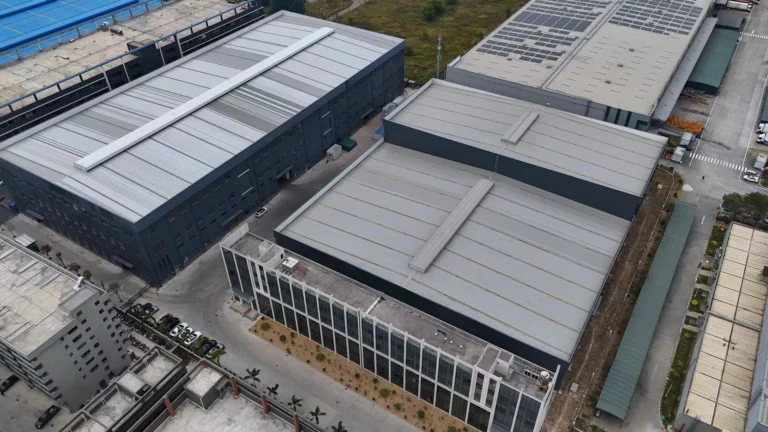

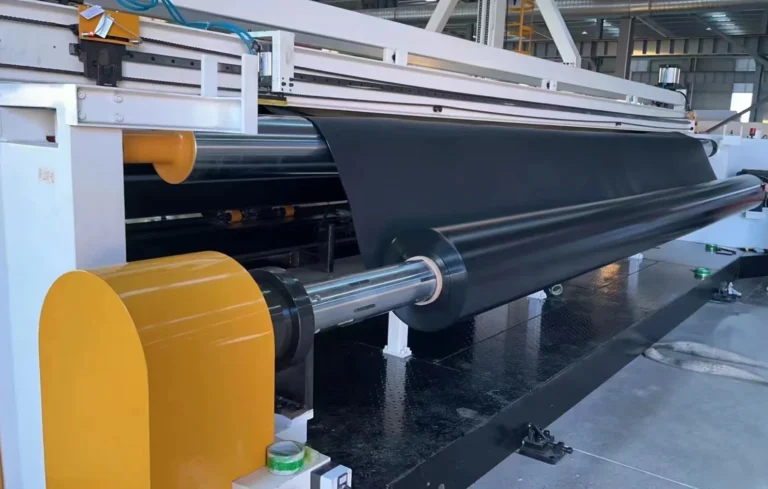

Jinseed manufactures geomembranes at its own facility in Zhaoqing, China, with a commercial head office in Singapore. Production, material testing and roll preparation are handled within the manufacturing operation.

Manufacturing facility: 55,000 m²
Annual HDPE capacity: 20,000 t

Discuss a factory inspection

Facility area and capacity are published in Jinseed’s manufacturing profile. Capacity is not a delivery commitment; production slots are confirmed for each order.

HDPE liner specifications
& surface options.

Smooth, single-sided textured and double-sided textured liners. Match the quoted grade to your required thickness and interface conditions.

Smooth HDPE

Smooth on both faces for ponds, reservoirs and containment cells where the design does not require a textured interface.

Single-sided textured HDPE

One rough face and one smooth face. Used where the liner design requires increased friction at one interface.

Double-sided textured HDPE

Roughness on both faces for layered containment systems with friction requirements above and below the liner.

Profiles are schematic. For sloped systems, confirm interface shear performance with the actual adjacent materials and project loading.

Scroll the table horizontally to compare all thicknesses.

Smooth HDPE — published datasheet values
Property	1.0 mm	1.5 mm	2.0 mm	2.5 mm	3.0 mm
Minimum average thickness Published smooth grades	0.96 mm	1.45 mm	1.93 mm	2.42 mm	2.90 mm
Tensile yield strength ASTM D6693	16 kN/m	24 kN/m	32 kN/m	39 kN/m	47 kN/m
Tensile break strength ASTM D6693	28 kN/m	40 kN/m	53 kN/m	70 kN/m	85 kN/m
Puncture resistance ASTM D4833	330 N	550 N	700 N	825 N	1,000 N
Tear resistance ASTM D1004	130 N	195 N	260 N	320 N	374 N
Listed roll length At 8.0 m width	210 m	140 m	105 m	84 m	70 m

Source: Jinseed HDPE technical datasheet (PDF), minimum-property table. Values above apply to the listed smooth grades. Confirm the current grade, roll dimensions and acceptance criteria in your quotation.

Stress crack resistanceASTM D5397 · Datasheet minimum: 800 h
High-pressure OITASTM D5885 · Datasheet minimum: 500 min
Carbon black contentASTM D6370 · Datasheet range: 2.0–3.0%

Specifying textured HDPE? Request its own property table, texture-height data and required seam-edge configuration. Smooth-grade values are not a substitute.

Request textured-grade data

Manufacturing &
batch quality control.

Virgin geomembrane-grade resin

HDPE liners produced from virgin resin. Request the resin information for your specified grade.

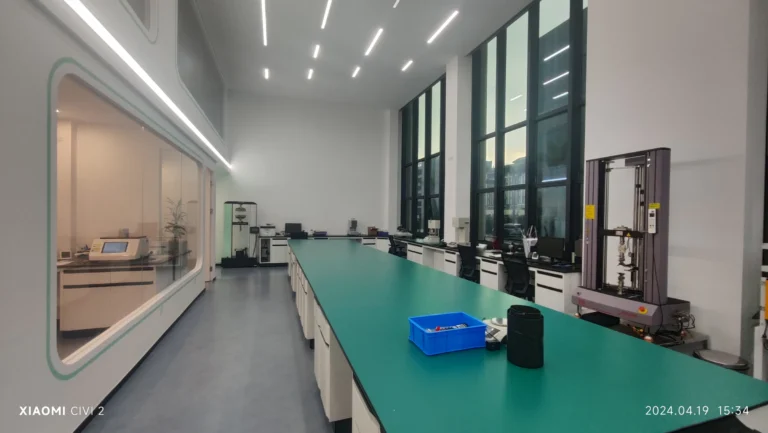

Raw-material and finished-product checks

Quality inspection covers incoming materials and finished products before factory release. Product samples are retained.

Batch documentation for your order

Request test reports and the batch certificate linked to the roll identification on your packing list.

Project-specific roll planning

Confirm width, length, packing and container loading with the quote. Wider panels can reduce field seams where the layout permits.

Review Jinseed’s quality control

Build your technical
approval package.

Review the quoted grade, testing scope and supplier records before releasing the purchase order.

Start with the published documents

The data sheet lists product properties. Order-specific batch records identify the material supplied.

HDPE technical data sheet (PDF) Installation guide (PDF) Factory quality-control information

Product data & project standard: Confirm the exact thickness, surface, property limits and required GRI-GM13 revision. Include any additional tender or local approval requirements.
Grade-specific test documentation: Request the relevant reports with product identification, test methods, dates and laboratory details. Agree any additional independent testing before production.
Batch certificate & roll traceability: Production and test records link back to the roll IDs on your packing list. Include the batch certificate and identification records in your receiving inspection and project file.
Supplier qualification records: Request current quality-system certification and the product-specific evidence your tender requires. Check the issuing body, scope, named entity and validity dates.

Need a physical sample? Send the grade and delivery address with your request. Confirm sample availability, size and courier arrangements before dispatch.

Request samples & documents

Containment applications.

Product selection depends on the contained material, loading, subgrade and liner-system design.

Geomembrane sheets laid across an earthworks containment basin and slope — Geomembrane lining installation, from Jinseed’s project imagery.

Landfill & leachate

Base liners, caps and leachate ponds. Match the grade to waste exposure, protection layers and the specified acceptance tests.

Mining & process ponds

Heap-leach pads and process-solution containment. Review solution chemistry, operating temperature and interface loading.

Reservoirs & irrigation

Reservoir, canal and water-storage lining. Account for water depth, subgrade, exposed areas and anchoring design.

Industrial wastewater

Wastewater lagoons and process basins. Review fluid composition, concentration and temperature for compatibility.

Final thickness, surface and protection layers should follow the project engineer’s approved design.

PET geotextile protection

Jinseed also manufactures PET non-woven geotextile in 100–830 g/m² grades, with widths up to 6 m. Include the engineer-specified protection layer in the same material enquiry.

Review PET geotextile options

Welding & installation guidance

The installation guide covers preparation, handling and seam work. Agree trial welding, seam testing and acceptance criteria for the actual grade and site conditions.

Read the installation guide (PDF)

Price, production
& shipment planning.

Use the published ranges for initial planning. Your quotation confirms the order quantity, schedule and delivery scope.

Trial-order starting rangeRegular specifications: 1–3 tonnes
Standard production rangeAfter specification approval & deposit: 7–15 days
Custom-order production rangeConfiguration & schedule dependent: 15–25 days

Planning ranges from Jinseed’s published ordering information. Custom orders may require a higher minimum. Production time excludes freight, customs clearance and site delivery.

Ask for a like-for-like quotation

Material & quantity basisGrade, thickness, surface, roll dimensions and price per m² or tonne.
Delivery & destinationRequired trade term, named port or place, freight scope and included charges.
Testing & documentsRoutine records plus the scope and cost of any additional third-party inspection.
Commercial conditionsPayment terms, quotation validity and the written warranty applicable to your order.

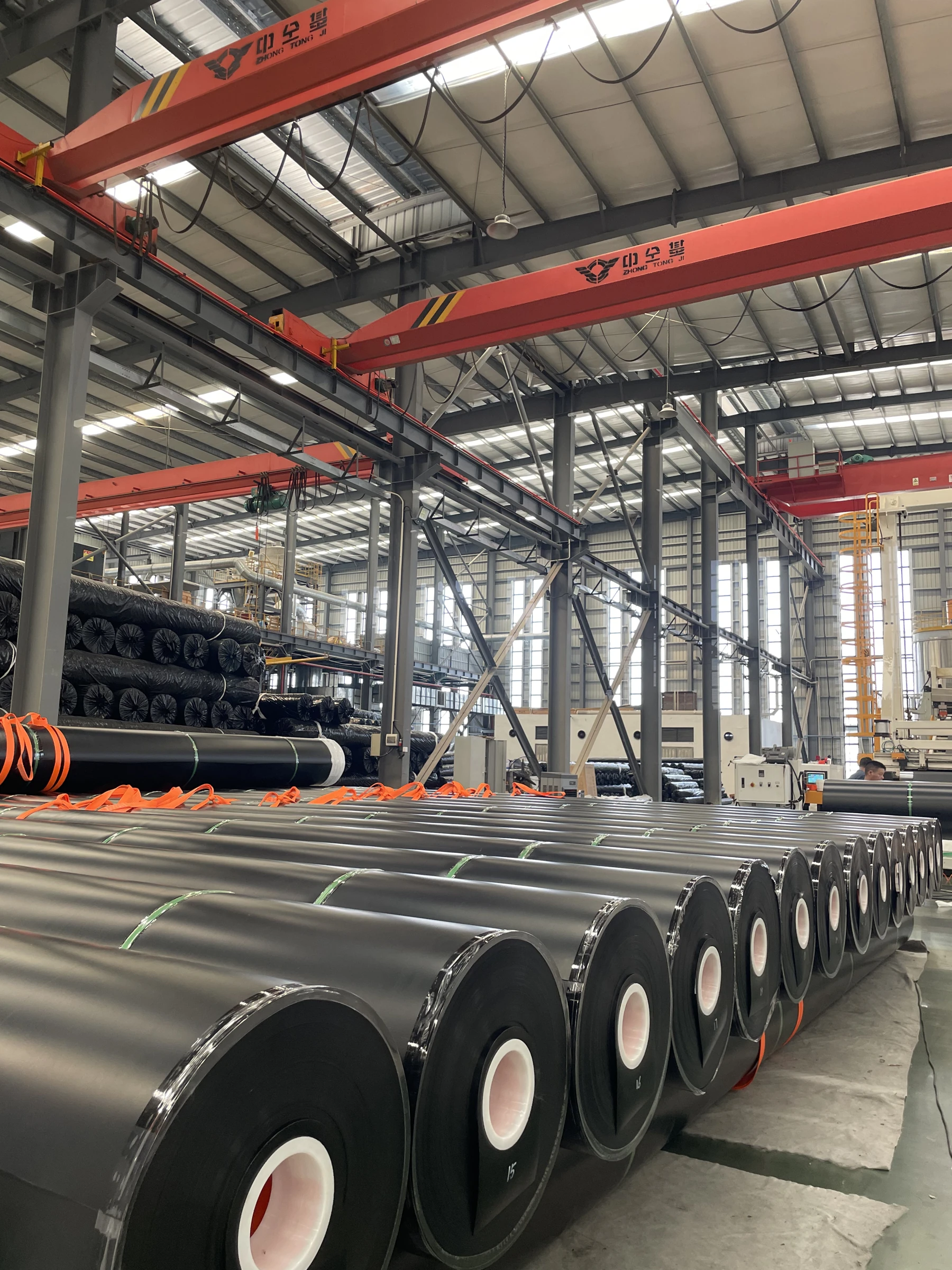

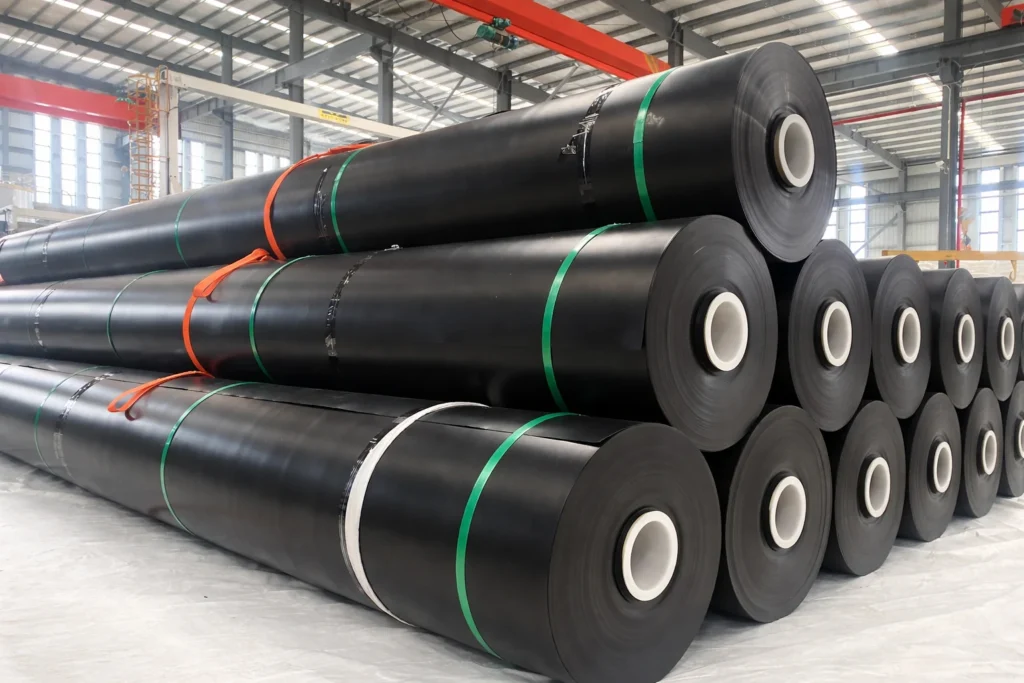

Rolls planned for handling and loading

Reinforced cores and lifting straps support roll handling. Confirm roll length, mass, packing and unloading requirements before production.

Traceable shipment records

Jinseed’s published export process includes loading photographs and container seal records. Agree the packing list and roll-identification records with the order.

Gross roll area is not installed coverage

A listed 1.5 mm smooth roll at 8 m × 140 m contains 1,120 m² of sheet. Net coverage must allow for seams, anchoring, detailing and cutting losses.

Request production & freight pricing

Already have a bill of quantities? Email the file with your destination and required arrival date. Use the specified material schedule as the basis for the quote.

Email your BOQ for pricing

Before you order.

Pricing, specification and delivery details to confirm with your quotation.

Email your project specification

What determines the price of an HDPE liner?

Thickness, surface, roll dimensions, order quantity and delivery terms affect the quotation. Send the required area or tonnage, destination port and project specification so the quote can include the material and agreed shipping scope.

Can I order to a GRI-GM13 specification?

Send the required GRI-GM13 revision, thickness, surface and any additional tender criteria. Ask Jinseed to confirm compliance and provide the applicable product data and test documentation for the quoted grade before approval.

What are the minimum order and lead time?

Published trial orders start from 1–3 tonnes for regular specifications. Standard production is listed at 7–15 days after specification approval and deposit; custom orders at 15–25 days. The quotation confirms the minimum and schedule for your configuration. Freight and customs time are additional.

How do I choose the HDPE liner thickness?

Start with the project specification. Jinseed lists smooth grades from 1.0 to 3.0 mm; selection also depends on subgrade, puncture loading, exposure, protection layers and local requirements. Share the drawing or material schedule for a grade quotation. Thickness alone does not establish suitability for a containment system.

What warranty applies to my order?

Request the written warranty for the quoted grade and application before ordering. Check its duration, covered defects, installation and storage conditions, exclusions and claim procedure. A projected material service life is not the same as a product warranty.

Is installation guidance available?

Jinseed publishes an installation guide covering handling, subgrade preparation and seaming. Welding parameters, seam tests and acceptance criteria must follow the project specification and site conditions; agree any additional technical support in the quotation.

Get a quote for your HDPE liner.

Send your specification or bill of quantities. Request pricing, roll configuration, production lead time and the applicable test documents together.
