LLDPE geomembrane liner installed across a large containment site

LLDPE Geomembrane Liner Manufacturer

We make flexible LLDPE liners in our own factory in Guangdong, China, and ship them straight to your site. Every roll is 100% virgin resin, tested in our own lab to GRI-GM17.

Email Us for a Quote WhatsApp +65 8426 5294

15+Years making liners

50+Countries we ship to

100%Virgin resin, no regrind

1 rollMinimum on stock sizes

Key Figures, Straight From the Data Sheet

0.5–2.0 mmStandard thicknesses, custom on request

8 mWidest rolls, fewer seams to weld on site

800%Smooth-grade GM17 reference; verify offered grade

27–53 kN/mGM17 smooth reference, 1.0–2.0 mm; ASTM D6693

250–500 NGM17 smooth reference, 1.0–2.0 mm; ASTM D4833

7–14 daysStandard production lead time

For fish and shrimp ponds, request finished-liner suitability evidence for the intended water contact and operating conditions.Request grade documentation

GRI-GM17 Reference Values for Smooth LLDPE

Selected minimum-average properties from GRI-GM17 Revision 17 (June 11, 2025), Table 1(b), for smooth LLDPE. These are specification references, not Jinseed batch test results or a complete conformity assessment. Textured grades have different requirements.

Property	ASTM Method	1.0 mm (≈39.4 mil)	1.5 mm (≈59.1 mil)	2.0 mm (≈78.7 mil)
Tensile strength at break	D6693	27 kN/m	40 kN/m	53 kN/m
Elongation at break	D6693	800%	800%	800%
Tear resistance	D1004	100 N	150 N	200 N
Puncture resistance	D4833	250 N	370 N	500 N
Carbon black content	D4218*	2.0–3.0%	2.0–3.0%	2.0–3.0%

Source: official GRI-GM17 specification. *D1603 or D6370 may be used when appropriately correlated with D4218. Test frequencies vary by property; not every test is performed on every roll. Request the offered grade data sheet, roll-linked results and sampling frequency. Published roll widths of 5.8–8.0 m are supply options to confirm, not GM17 requirements. Use one specified unit system; rounded mil labels are not interchangeable acceptance limits.

Soft Enough to Follow the Ground

LLDPE geomembrane sheet unrolled on site, following the shape of the ground — The sheet unrolls flat and settles into bumps and dips instead of bridging over them.

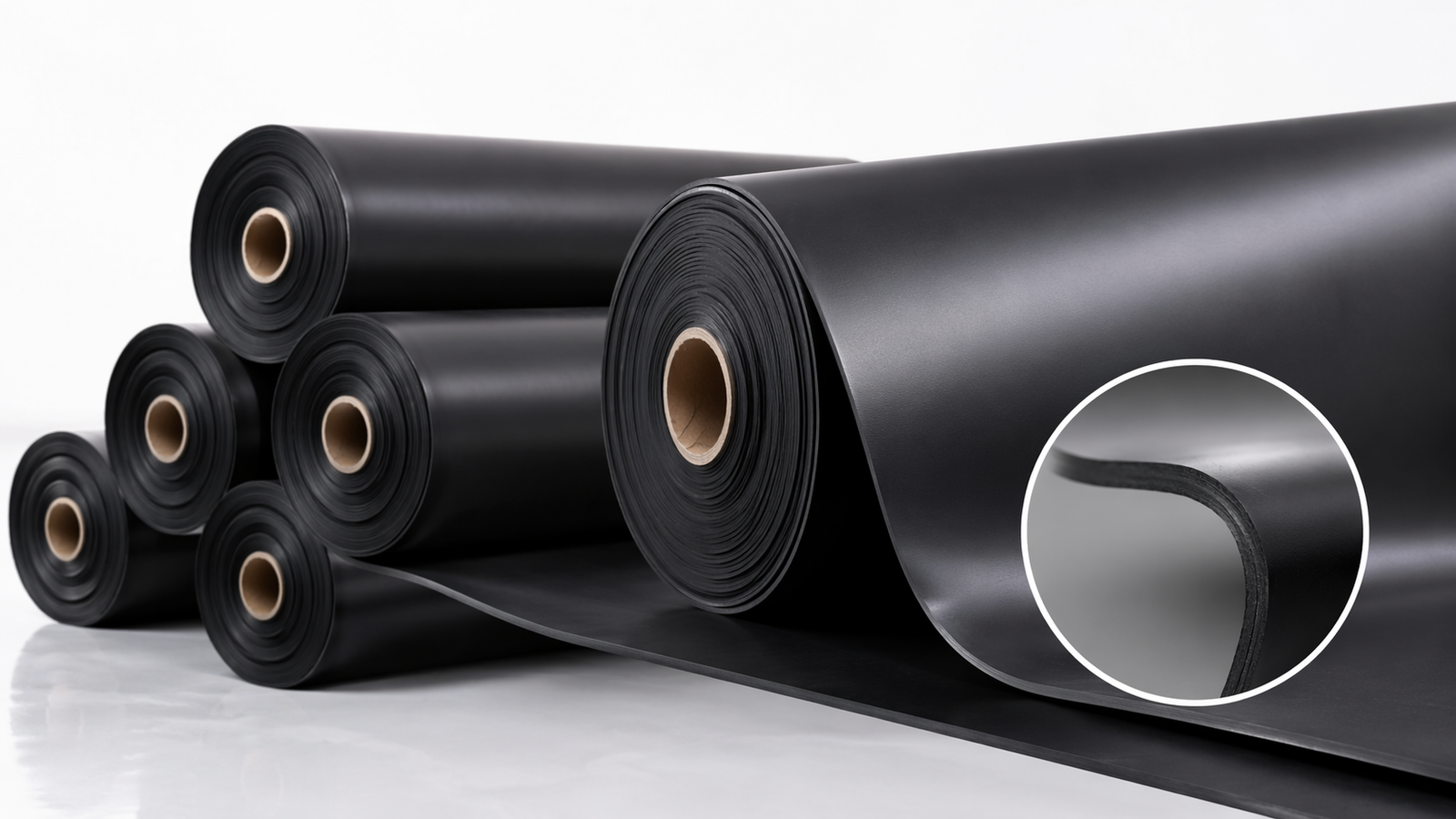

Close look at the smooth, even surface of an LLDPE geomembrane roll — Smooth surface, even thickness from edge to edge — checked while the line runs.

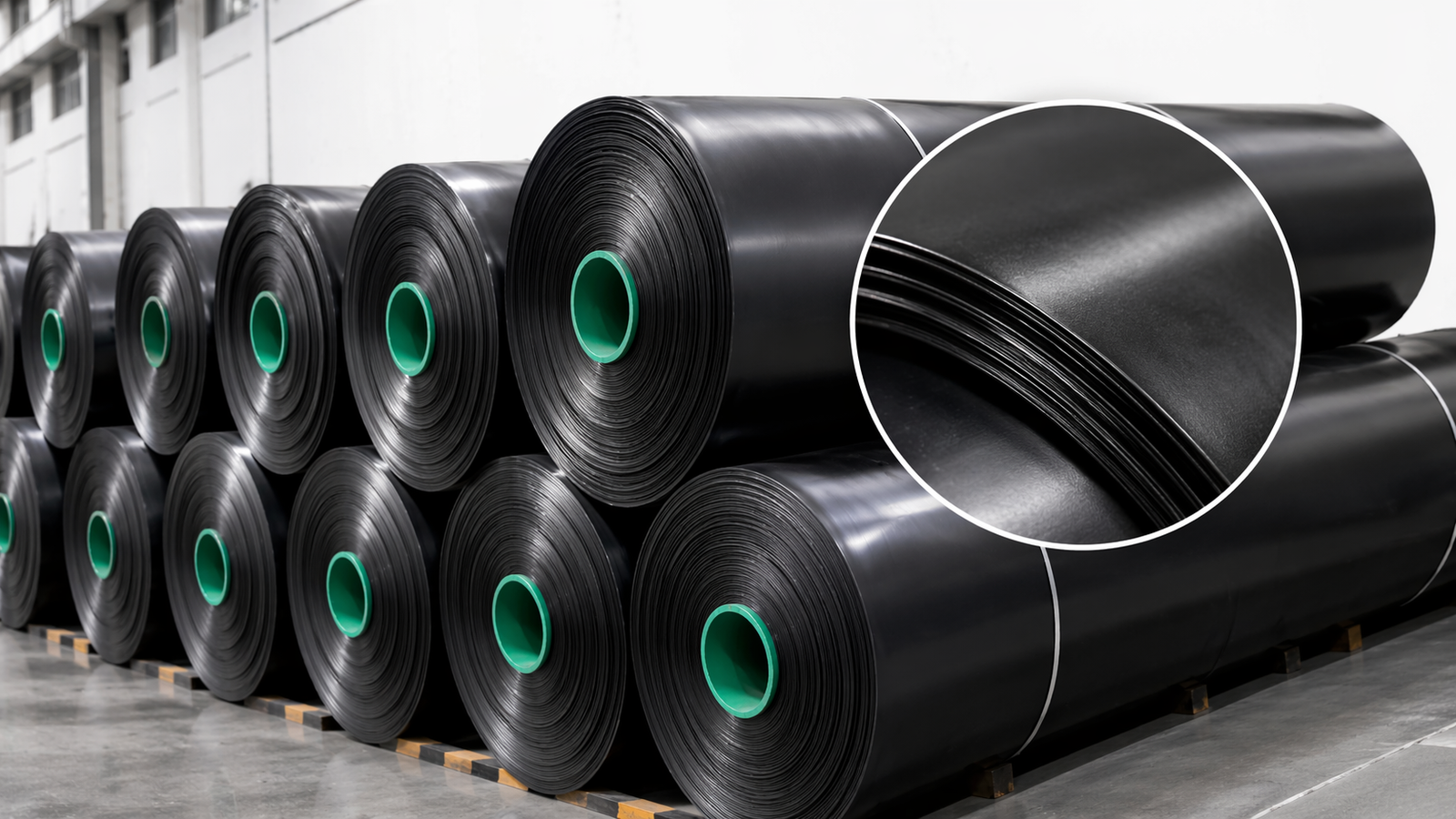

LLDPE geomembrane rolls with green cores stacked in the Jinseed warehouse — Stocked in our warehouse and ready to load when your schedule is tight.

LLDPE or HDPE? A Quick Way to Decide

LLDPE fits your job when…

The ground is uneven, rocky or full of bumps

The site may settle over time — landfill caps, mine closures

The layout has curves, corners or pipes to work around

You need pond lining with documented suitability for the intended water contact

HDPE fits better when…

The design specifies HDPE after chemical and temperature compatibility review

You want the stiffer, harder sheet for a big open site

The tender specifies GRI-GM13 for a landfill base liner

Read the full HDPE vs LLDPE comparison

Need Something Non-Standard?

Green or White Surface

Black is standard. Green or white comes by special order — white reflects heat on exposed jobs.

Conductive Layer Option

Lets your crew spark-test the whole sheet for pinholes, not just the seams.

Roll Size Set to Your Plan

Widths from 5.8 m to 8.0 m. Roll length is cut to your site layout, so less is wasted.

Custom Thickness From 0.5 mm

Tell us the application and we will suggest a thickness before you commit.

Black and green geomembrane rolls produced by special order

Four Products, One Factory

LLDPE Geomembrane Liner

Flexible lining for detailed geometries and assessed settlement. Pond applications require project-specific water-contact review.

View specifications

Smooth HDPE Geomembrane Liner

The stiff, chemical-resistant workhorse for landfills, ponds and mining containment.

View specifications

Textured HDPE Geomembrane Liner

Single- or double-sided texture for steep slopes and heap leach pads. More grip, less sliding.

View specifications

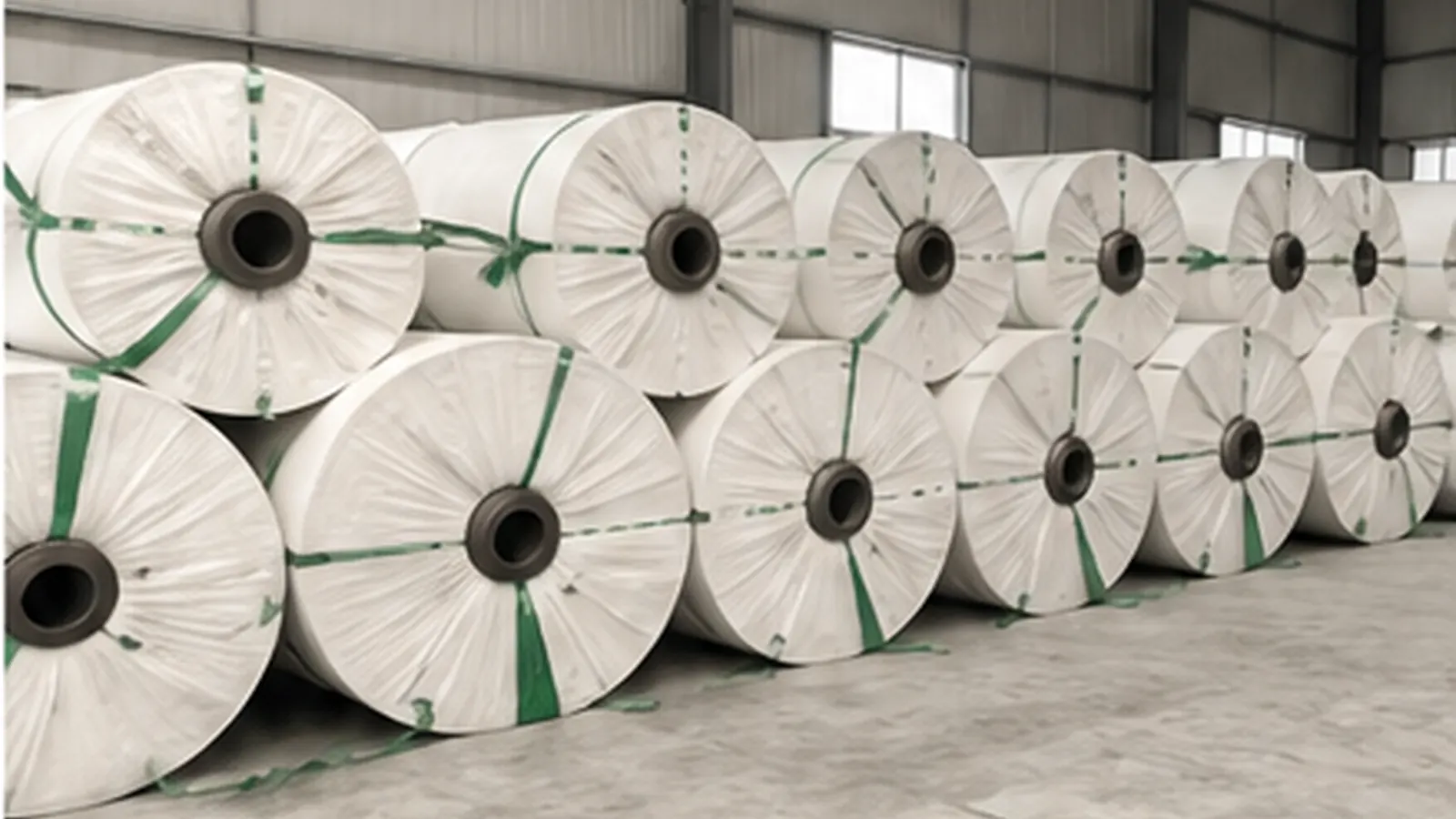

PET continuous filament non-woven geotextile fabric detail

PET Non-woven Geotextile

The protection and filtration layer that sits above or below the liner.

View specifications

Made in Our Own Factory, Not Traded

Some suppliers buy rolls and resell them. We don't. Every liner leaves our own production hall in Zhaoqing, Guangdong.

One Roof, Full Control

Resin comes in, finished rolls go out. Nothing is outsourced, so nothing is out of our hands.

Multi-Layer Co-Extrusion

Blown-film lines build each sheet in layers, so strength stays even in every direction.

Verify Release Records

Request the inspection plan, lot-linked results and disposition of any failed tests before accepting shipment.

Checked Before It Ships

Resin Check

Melt flow, density and carbon black mix are tested before the resin goes in.

Batch Records

QA reviews the resin certificate and re-samples every incoming batch.

Live Thickness Watch

Sensors watch the full roll width while the line runs and keep it even.

Lab Testing

Review tensile, tear, puncture and carbon black results with the specified ASTM methods and property-specific sampling frequencies.

Outside Inspectors

Agree any independent sampling, laboratory scope and pre-shipment inspection with the buyer and appointed laboratory before production.

Confirm roll identification, sample retention and record-retention periods in the purchase agreement.

Where LLDPE Liners Do the Work

Landfill Closures & Caps

Moves with the waste as it settles, year after year, without tearing.

See application

Fish & Shrimp Ponds

Lining for water containment and pond cleaning; confirm finished-product compatibility with the water chemistry and intended aquatic species.

See application

Decorative Ponds & Golf Courses

Bends into curves, islands and landscaped shapes without wrinkles.

Read the pond liner guide

Underground Containment

Secondary containment, tanks and root barriers, out of the sun.

See application

Mine Closures & Reclamation

Covers that tolerate settlement on spent leach pads and reclaimed ground.

See application

Canals & Reservoirs

Flexible lining for channels and water-storage projects.

See application

Application Checks Before Ordering

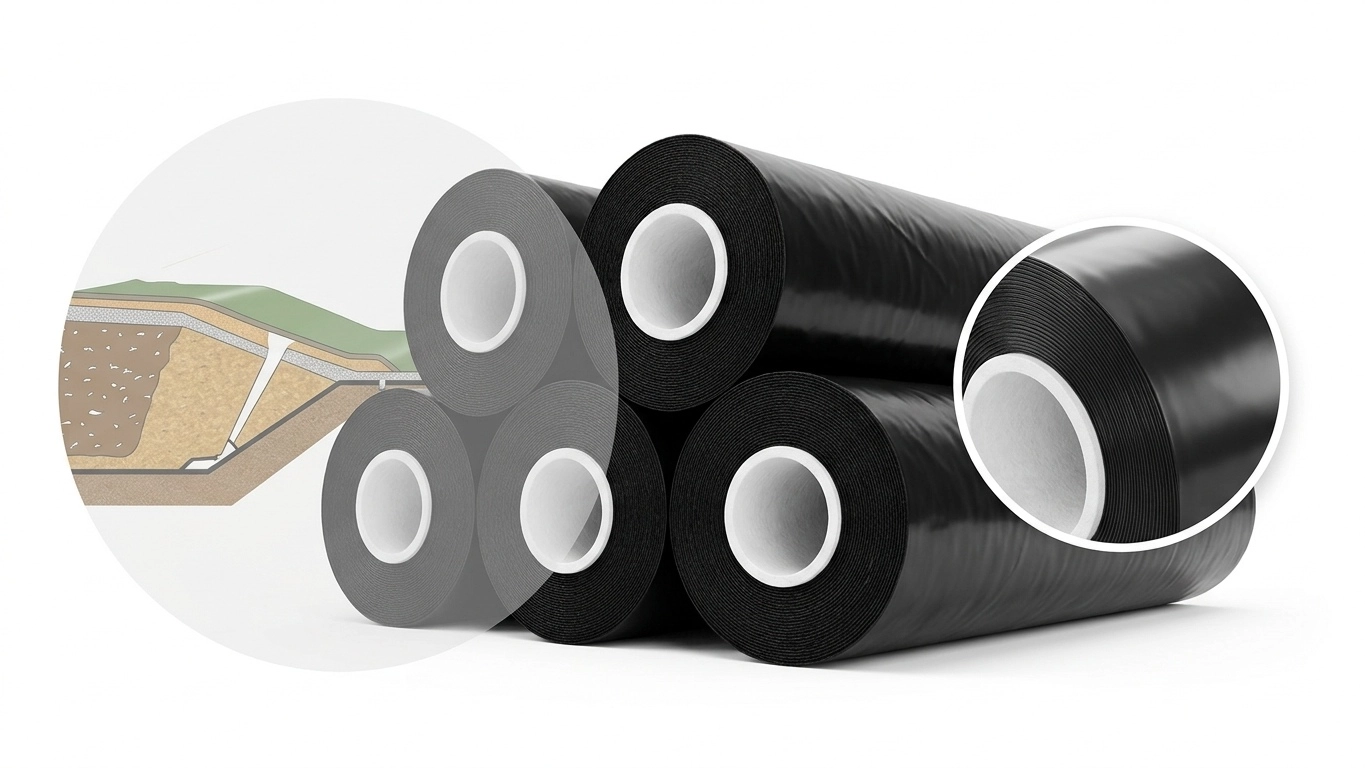

Existing liner application photograph illustrating a landfill capping discussion

Landfill capping: deformation assessment

Municipal Landfill Capping

For a landfill cap, check predicted settlement, allowable strain, cover loading and interface stability. Flexibility alone does not establish that the complete cap will remain sealed.

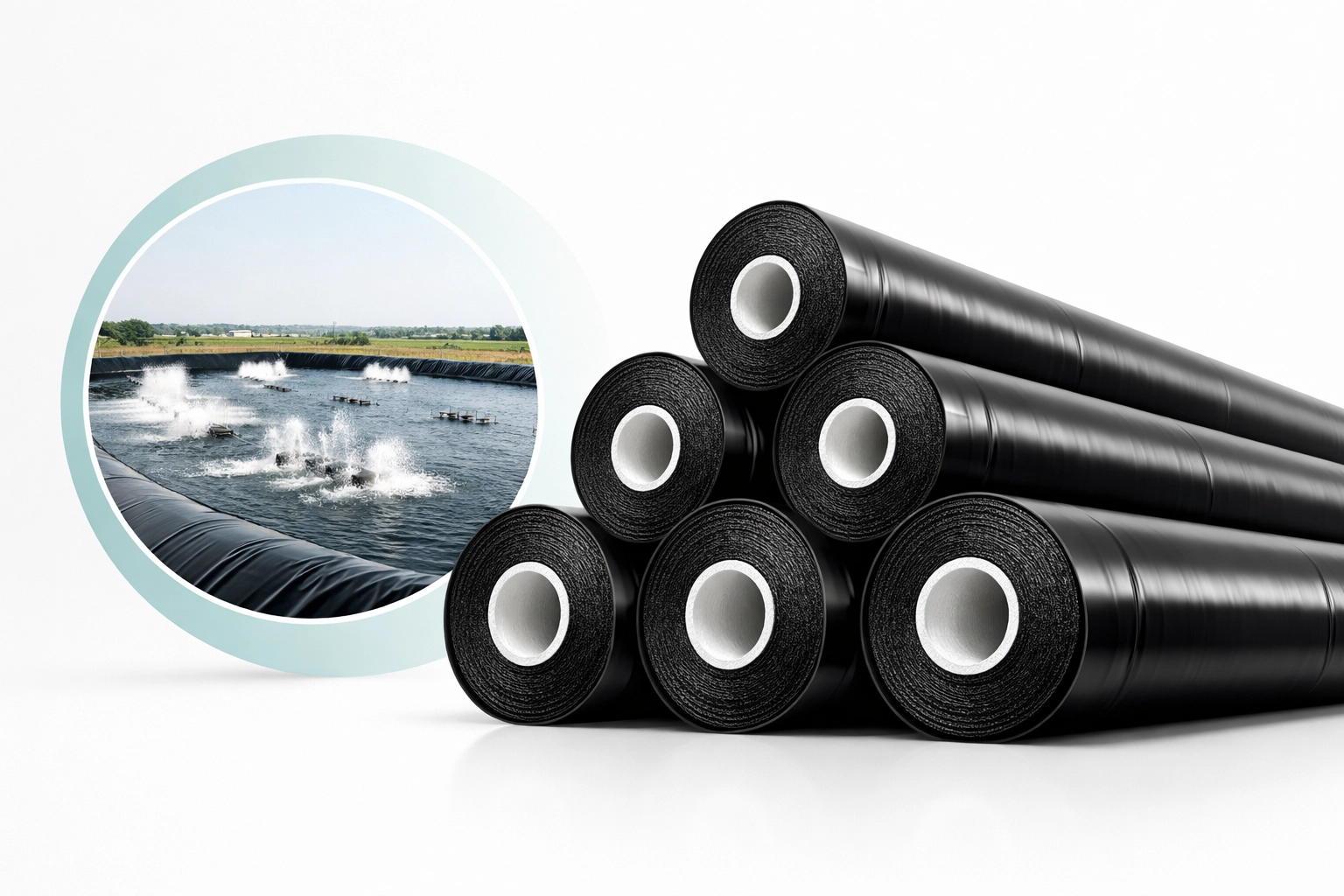

Lined aquaculture pond with aeration equipment

Aquaculture: exposure and protection

Aquaculture Pond Selection

For aquaculture ponds, verify water-contact suitability, cleaning exposure, subgrade protection and seam acceptance. A liner specification alone does not establish a change in harvest performance.

Project evidence: verify the comparison

Request a Documented Project Reference

Ask for the project location and year, supplied grade and thickness, installation records and the measurement basis for any claimed performance change. Confirm what the reference demonstrates before applying it to a different project.

Send Your Specification, Get a Full Answer

Product, thickness, roll size, quantity and destination port — that is all we need to come back with pricing, lead time and a container loading plan.

Email Your Specification Chat on WhatsApp

Installing It Right

Preparing and compacting the subgrade before laying geomembrane

Prepare the Ground

Flat, compacted soil with no sharp stones or roots. Aim for at least 90% compaction.

Controlling the overlap between adjacent geomembrane sheets

Watch the Overlap

Keep sheets overlapped by 100–150 mm so the weld comes out clean.

Dual-track hot wedge welding of geomembrane seams

Weld the Seams

LLDPE welds easily on standard hot wedge machines; extrusion welding for corners and pipes.

Air pressure test on a welded geomembrane seam

Test Every Seam

Air-channel test at 0.25 MPa for 5 minutes. No pressure drop, no leak.

The full procedure is in our installation guide.Download the guide

Ordering, Plain and Simple

From 1 rollIn-stock sizes, ready for urgent repairs and small pilot jobs

1 × 20 ft containerMinimum for custom thickness, width or color

7–14 daysStandard production time after specification and deposit

10–20 yearsWarranty agreements, depending on the application environment

Certificates You Can Check

ISO 9001:2015 certificate held by Jinseed

2023 IGS corporate membership certificate of Jinseed Geosynthetics

ISO 9001:2015 and ISO 14001:2015

Certified quality and environmental systems covering geomembrane production, audited regularly.

Product-Specific Conformity Documents

Request grade-specific GM17 test documentation and, where applicable, the relevant declaration of performance and CE documentation. GM17 is a specification, not a third-party product certificate.

In-House Laboratory

Compare test method, specimen preparation, direction and conditioning before comparing laboratory results; identical results across laboratories are not guaranteed.

IGS Membership Record (2023)

The displayed membership certificate is dated 2023. It records membership for that period and is not product certification.

Outside Inspection Welcome

A buyer-appointed laboratory may be included in the inspection plan, subject to its confirmed scope, availability and agreed sampling arrangements.

Packed for a Long Sea Journey

Strong Cores

Each roll is wound tight on a heavy-duty core, so it does not crush when stacked.

Tough Wrapping

A UV-resistant woven bag keeps out abrasion and sunlight, in transit and on site.

Lifting Straps

Reinforced straps at both ends, so your crew can unload by forklift or crane without damage.

Loading Report

Roll lengths planned around 40HQ containers. Photos and seal numbers sent before departure.

Downloads and Reading

Geomembrane Installation Guide

PDF · about 8.6 MB · ground preparation, welding and seam testing

Download

PET Non-woven Geotextile Brochure

PDF · the protection and filtration layer used above and below our liners

Download

HDPE and LLDPE geomembrane comparison article cover

HDPE vs LLDPE Geomembranes

Stiff vs flexible, settlement behavior and where each material wins.

Read article

LLDPE geomembrane installation tips article cover

Installation Tips for LLDPE

Ground prep, panel layout, welding windows and the mistakes that cause leaks.

Read article

Aquaculture pond liner material selection article cover

Liners for Aquaculture Ponds

Material selection, seepage control and service life for fish and shrimp ponds.

Read article

Questions Buyers Usually Ask

What is the minimum order?

In-stock sizes start from just one roll, which covers urgent repairs and small pilot jobs. Custom thickness, width or color starts from one 20 ft container, which keeps the batch even and the price per square meter low.

How long does production take?

Standard sizes leave the factory in 7 to 14 days after we confirm the specification and the deposit. Custom orders take longer, and we give you the exact date in the quotation before production starts.

Do you use recycled resin?

Request a resin and formulation declaration for the offered grade. GRI-GM17 specifies virgin resin and permits up to 10% qualifying production rework under its stated conditions; it is not a fixed formulation recipe. If the project prohibits rework, state that additional requirement in the purchase specification.

When should I pick LLDPE over HDPE?

Consider LLDPE where flexibility and deformation capacity are important, such as assessed settlement or detailed geometries. Neither LLDPE nor HDPE is automatically suitable for a chemical exposure. Compare the actual fluid, temperature, loading, interface stability and installation conditions with the designer before selecting the grade.

How do you check quality before shipping?

Review roll identification, thickness records and the required tensile, elongation, tear, puncture and carbon black results. GM17 uses different frequencies for different properties. Agree independent witnessing, lot acceptance and treatment of failed results in the project inspection plan.

What do you need to send me a price?

Six things: product type, thickness, roll size, quantity, destination port and what the liner is for. Drawings or tender documents speed things up.

Get a Quote for Your Project

Email us your specification or drawing, or message us on WhatsApp. We will come back with pricing, lead time and a loading plan.

info@jinseed-geo.com WhatsApp +65 8426 5294

Head Office — Singapore

182 Cecil Street, Frasers Tower Level 17, Singapore 069547

Factory — Guangdong, China

No. 1 Fenggang North Road, Zhaoqing High-tech Industrial Development Zone
