HDPE geomembrane rolls inside the Jinseed factory in Guangdong, China

HDPE Geomembrane Liner Manufacturer

We extrude smooth and textured HDPE liners in our own factory in Guangdong, China — 1.0 to 3.0 mm thick, in rolls up to 8.0 m wide, from virgin geomembrane-grade resin. Send your project spec and receive a full quotation with test documents.

WhatsApp +65 8426 5294 Email Your Spec
TRI-tested to GRI GM13 20,000 t annual HDPE capacity 50+ countries supplied Batch COA with every order

The Numbers Buyers Ask For First

These are the figures most project engineers check before anything else. Every value is a reported test result, not a marketing line.

Thickness rangeSmooth and textured
1.0–3.0 mm
Roll widthFewer seams on site
up to 8.0 m
Thickness toleranceGRI GM13 allows ±10%
±3 %
Stress crack resistanceASTM D5397, GM13 asks ≥500 h
>2,000 h
High-pressure OITASTM D5885, GM13 asks ≥400 min
>600 min
UV resistanceStrength kept after 1,600 h, ASTM D7238
>60 %
Carbon black contentEven dispersion, batch-tested
2.0–3.0 %
Chemical resistanceAcids through alkalis
pH 1–13

Typical reported values. Ask for the datasheet and the test report for your batch before final specification — we send them with every quotation.

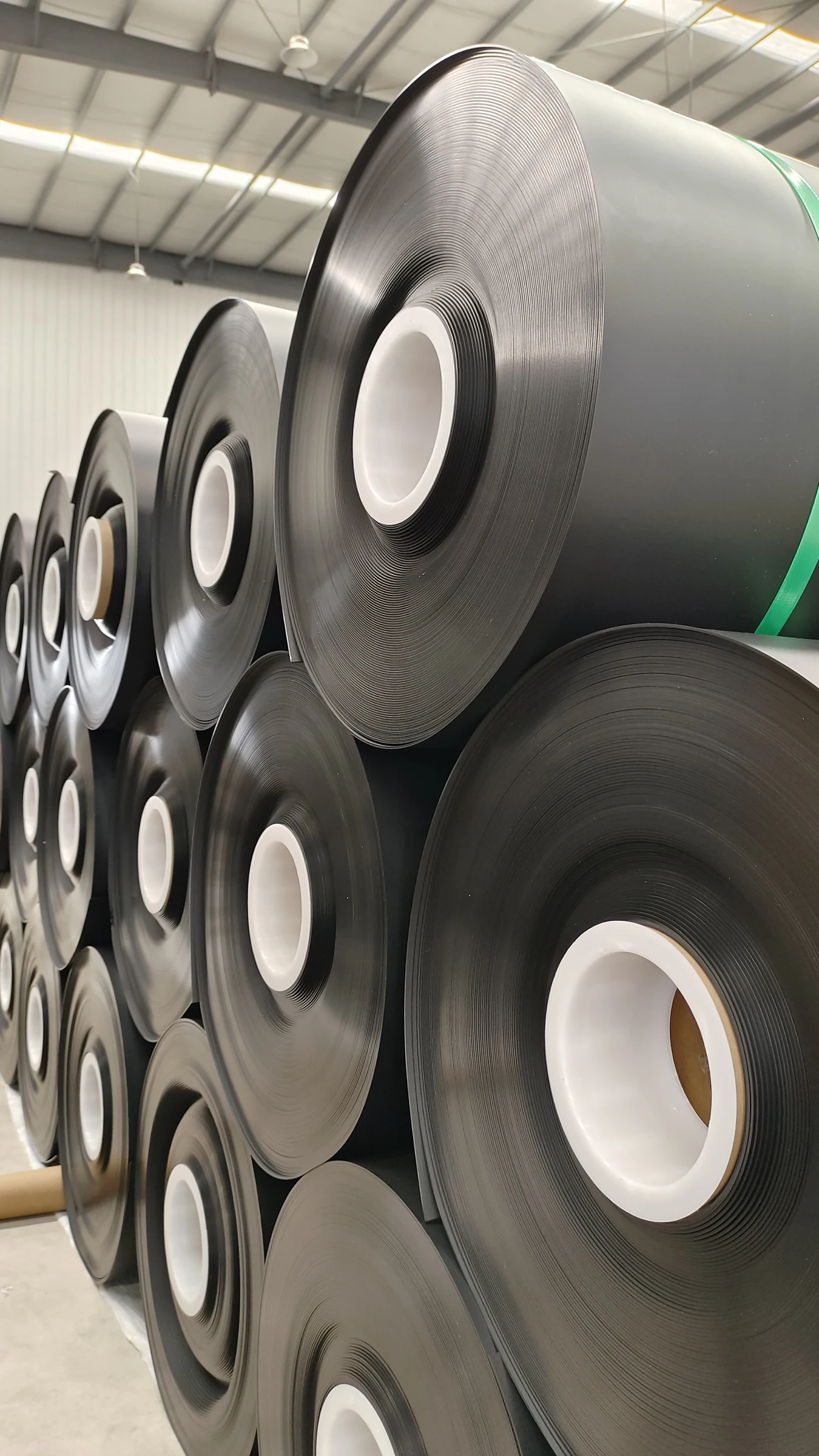

Jinseed smooth HDPE geomembrane rolls in factory storage

Textured HDPE surface, photographed on our own line.

Four Liners, One Factory

Pick the surface and thickness that match your slope, friction and containment requirements. Not sure? Send the drawing — we will tell you which one fits.

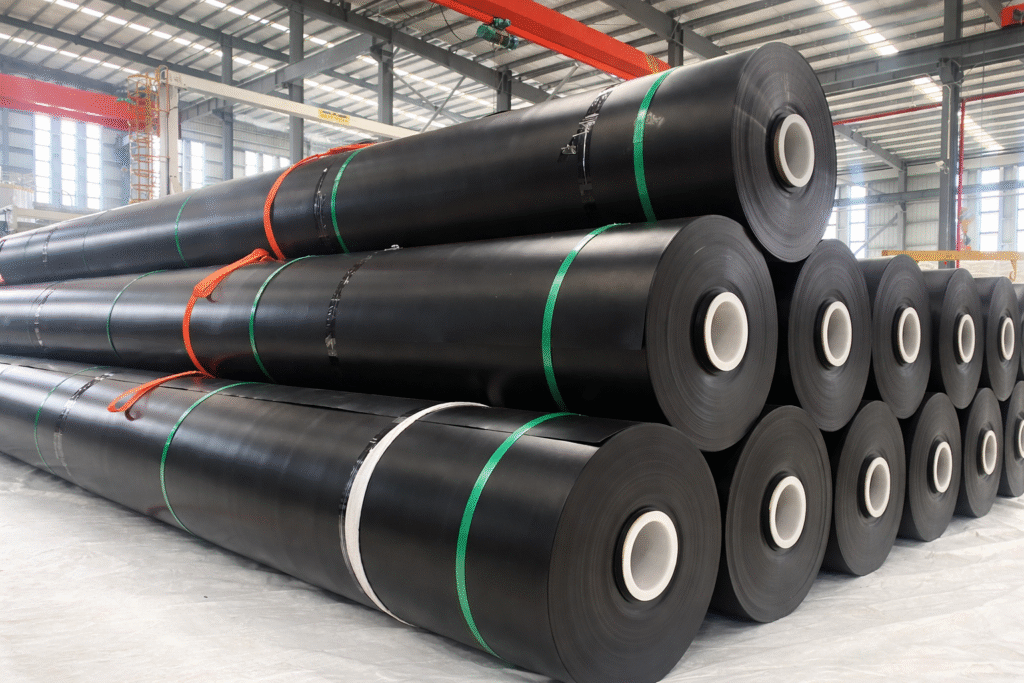

Smooth HDPE geomembrane rolls stacked for shipment

Smooth HDPE Geomembrane

For flat or gently sloped containment areas where easy welding, fast inspection and a reliable hydraulic barrier matter most. Ponds, reservoirs, wastewater lagoons and secondary containment.

1.0–3.0 mm · Smooth both sides · Width to 8.0 m

View smooth liner details

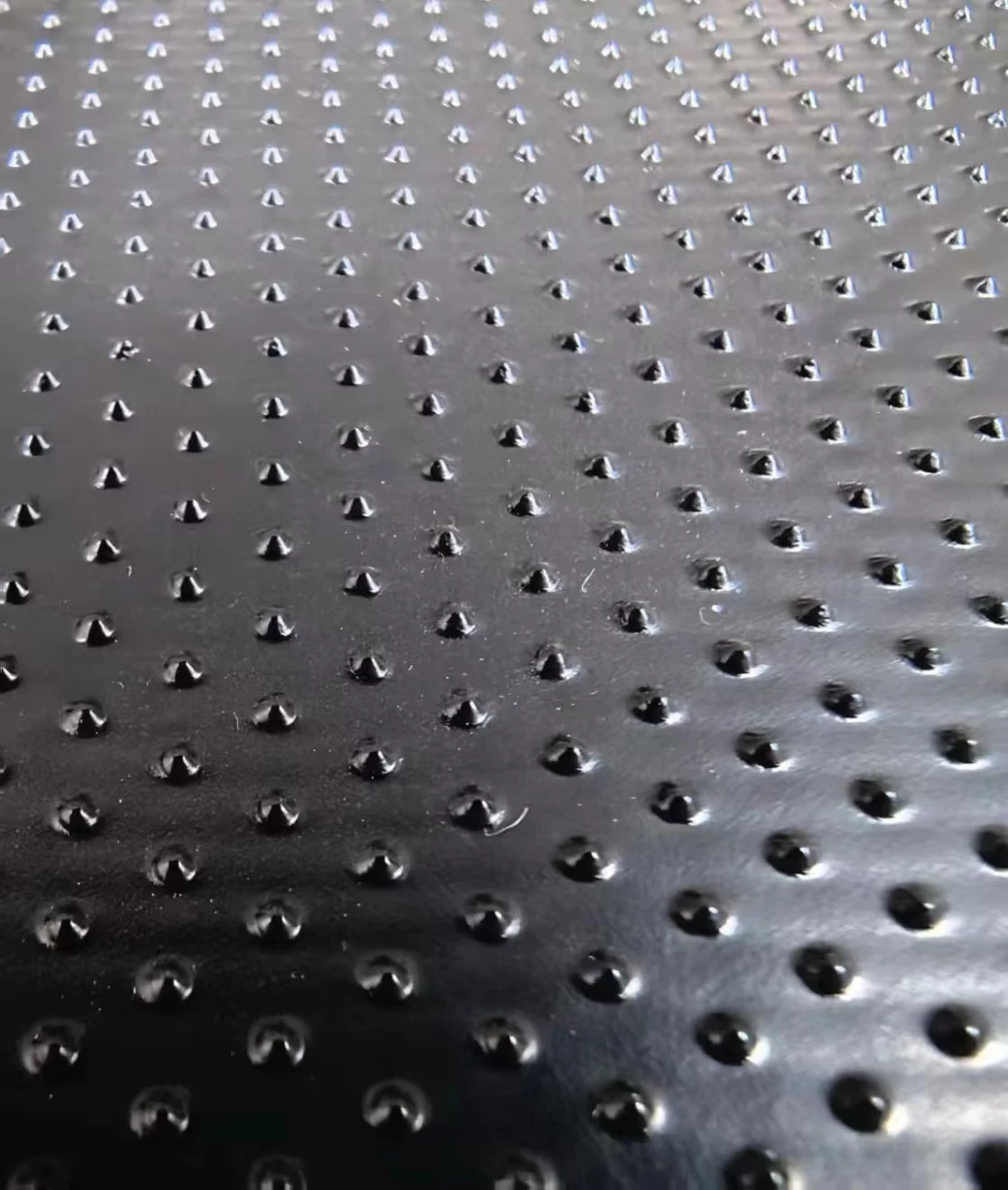

Textured HDPE geomembrane surface detail

Single-Sided Textured Geomembrane

Extra interface friction on one face while the other stays smooth for welding and contact layers. Used on slopes, covers and composite liner systems.

1.0–3.0 mm · One textured face · Width to 8.0 m

View textured liner details

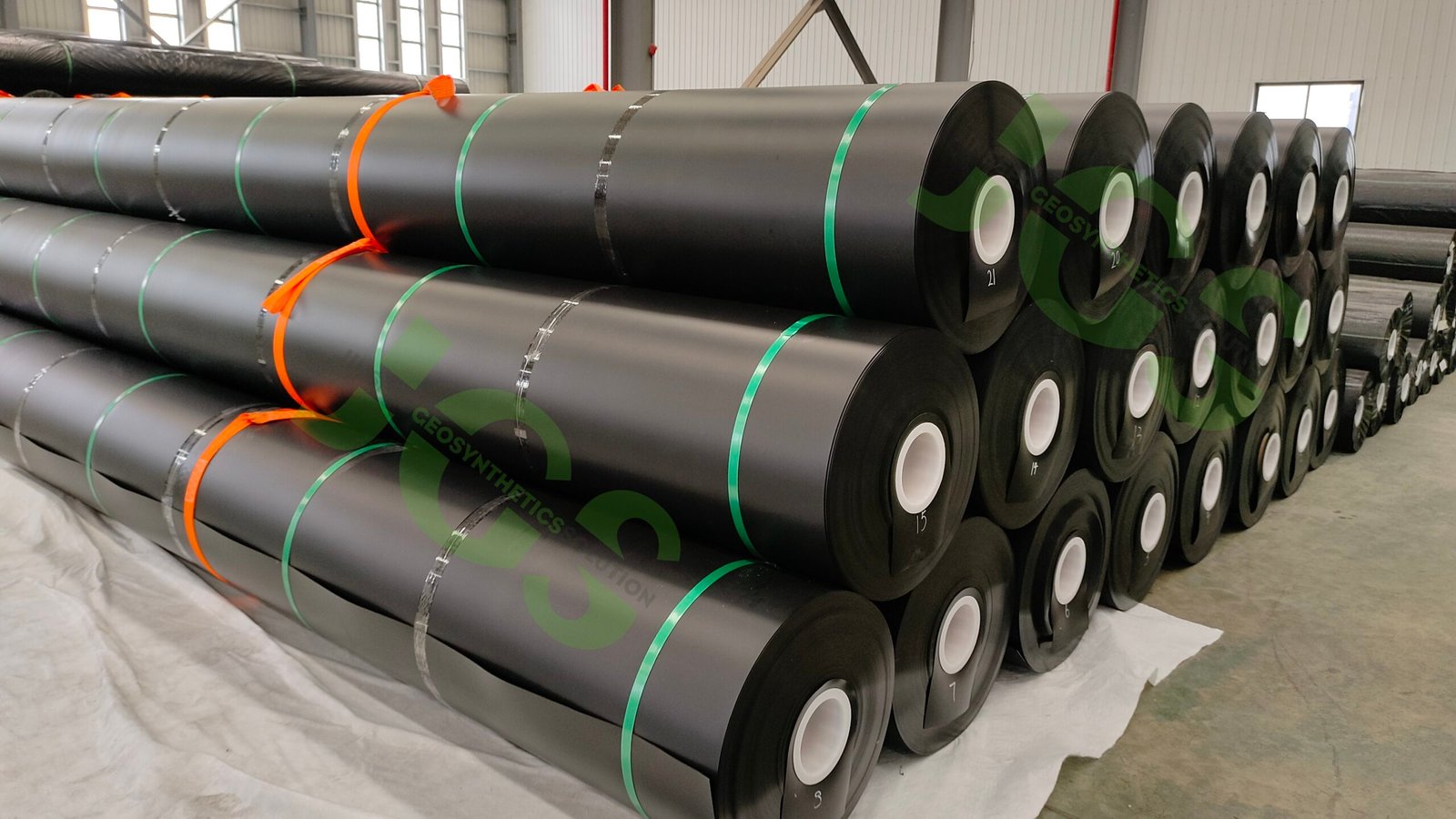

Double-sided textured HDPE geomembrane rolls with green strapping ready for packing

Double-Sided Textured Geomembrane

Friction on both faces for demanding slope stability and multi-layer containment systems. Standard choice for landfills, mining facilities and steep containment slopes.

1.0–3.0 mm · Both faces textured · Width to 8.0 m

View double-sided options
Flexible LLDPE geomembrane liner folded to show its pliability

LLDPE Geomembrane

Softer and more flexible than HDPE — it follows irregular shapes and settlement areas without stress. Food-grade 0.5 and 0.75 mm rolls are the standard choice for aquaculture ponds.

1.0–3.0 mm · GRI GM17 · Food-grade options

View LLDPE liner details

Need puncture protection under the liner? We also produce PET non-woven geotextile in-house, 100–830 g/m² — one supplier for the full liner package. See the geotextile range

Wide view of HDPE geomembrane roll stock inside the Jinseed plant

Sized for Big Projects

Our own 55,000 m² plant in Zhaoqing High-tech Industrial Development Zone runs automated lines around the clock — so a 40-container order does not push your project into next season.

0 m²Manufacturing facility
0 t/yrHDPE production capacity
0 mMaximum roll width
0+Countries and regions supplied

Head office in Singapore, factory in Guangdong. You deal with the manufacturer directly — no trader in the middle adding margin and delay.

How We Keep Every Roll Consistent

A liner fails where the sheet is weakest, so consistency matters more than any single test number. Four controls run through the whole production.

HDPE geomembrane production hall with finished rolls awaiting inspection

Virgin resin only

Geomembrane-grade HDPE from Sabic, Chevron Phillips and Borealis. No recycled content — and a certificate of analysis for every resin batch.

Flat-die extrusion

German flat-die and calendering line with controlled cooling keeps thickness uniform across the full 8.0 m width, roll after roll.

Inline inspection

Laser thickness monitoring and spark pinhole detection run continuously while the sheet moves — not just at the start and end of a batch.

Roll traceability

Production and test records tie back to the roll numbers on your packing list, so your project file stays audit-ready years later.

What the Standard Asks vs What We Test At

GRI GM13 is the reference most specifications are written around. Here is the requirement next to our reported results, side by side.

PropertyGM13 requiresReported result
Stress crack resistance (ASTM D5397)≥500 h>2,000 h
High-pressure OIT (ASTM D5885)≥400 min>600 min
UV retention @ 1,600 h (ASTM D7238)≥50%>60%
Thickness tolerance (ASTM D5199)±10%±3%

Reported values from our lab and independent testing. Final product selection must follow your project specification and engineering review. How to read a GM13 specification

Inside the Jinseed in-house geomembrane testing laboratory

Certifications You Can Verify Yourself

Every claim below has a document behind it. Ask and we will send the original files before you place anything.

ISO 9001:2015 certificate issued to Guangdong Jinseed Environmental Technology
ISO 9001:2015 quality system certificate
IGS Corporate Membership certificate for Jinseed Geosynthetics Solutions
IGS Corporate Member certificate
  • ISO 9001:2015 quality management system, audited by ZCC under CNAS accreditation.
  • IGS Corporate Member — International Geosynthetics Society, the industry body for our field.
  • Certificated lab testing every production batch before it ships.
  • TRI Environmental independently tests our HDPE geomembrane against applicable GRI GM13 requirements.
  • BTTG third-party sampling can be arranged for your order on request.

More detail on our inspection routine is on the quality page

Recent Projects Using Our Liners

Three jobs, three different problems. Each one started the same way — the buyer sent a spec and asked what we would recommend.

Mining · Chile

Copper heap leach pad, 1.5 mm textured + geotextile cushion

The ore loads were punching through the old liner. We supplied double-sided textured HDPE with a 600 g/m² PET cushion underneath, matched to the client's slope and chemical exposure. Once seepage was eliminated, leaching efficiency rose.

+12.4%leaching efficiency after relining
Crew installing geomembrane liner on containment slopes
Landfill · Southeast Asia

Municipal landfill expansion, 2.0 mm smooth HDPE

A municipal operator needed a base liner with a 50-year design life and seams tested to ASTM D6693. We produced 2.0 mm smooth rolls at 8.0 m width to cut the seam count, with batch documentation for the environmental review.

50 yrdesign service life of the liner system
Black HDPE geomembrane being installed across a large municipal landfill cell
Aquaculture · Indonesia & Vietnam

Intensive shrimp ponds, 0.5 / 0.75 mm food-grade LLDPE

Farms replacing aging lined ponds chose flexible food-grade LLDPE that conforms to pond shapes and cleans down fast between cycles. Farm records showed survival rates climbing once seepage and soil contact were under control.

+35%survival rate reported by farm operators
Lined intensive shrimp farming ponds using food-grade LLDPE geomembrane
Aerial view of the Jinseed geomembrane manufacturing facility

The Paperwork Comes With the Rolls

Tenders and environmental reviews stall on missing documents. Everything your project file needs ships with the order — or ahead of it, if you ask.

Technical datasheetFull property table for the exact product you order.
TRI test documentationIndependent results against applicable GRI GM13 requirements.
BTTG CE documentationFor projects that require CE-marked geosynthetics.
Batch certificate / COATied to the roll numbers on your packing list.
Packing & roll configurationCore size, roll length and container loading plan.
Installation & welding guidanceParameters and seam testing instructions for your crew.
Download Data Sheet (PDF) Product Brochure (PDF) Installation Guide (PDF)

Where Our Liners Go to Work

Six sectors account for most of what leaves our factory. Each has its own thickness, surface and documentation habits — we know them.

Municipal solid waste landfill cell lined with HDPE geomembrane

Landfills

Base liners, caps and leachate containment with full batch records.

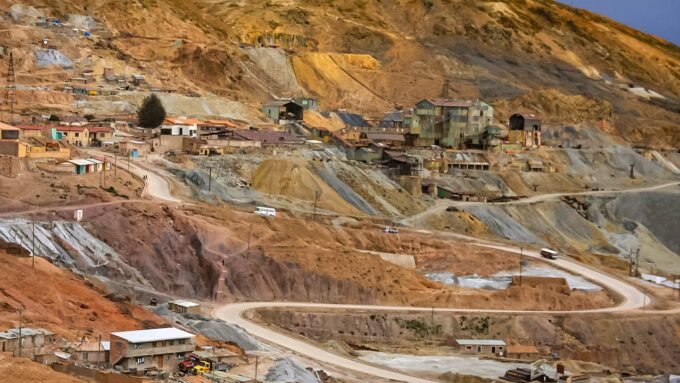

Open-pit mining site using geomembrane-lined containment

Mining & Heap Leach

Textured liners and cushions that survive ore loads and acids.
Water reservoir lined with blue-tinted geomembrane holding clean water

Reservoirs & Irrigation

Water storage that stops seepage losses season after season.
Aquaculture pond lined with black geomembrane at the water edge

Aquaculture Ponds

Food-grade LLDPE that cleans down fast between cycles.
Irrigation canal lined with geomembrane carrying water through farmland

Canals & Civil Works

Channel linings and containment for infrastructure projects.
Industrial wastewater evaporation ponds lined with HDPE geomembrane

Industrial Wastewater

Evaporation and process ponds rated for pH 1–13 exposure.

We Stay Involved After Delivery

Most liner failures are installation failures. We share what we know so your crew gets it right the first time.

Technician welding HDPE geomembrane seams on a project site

Subgrade & anchoring

Guidance on surface preparation, anchor trench dimensions and backfill — the parts that decide whether a liner stays put.

Welding parameters

Hot-wedge and extrusion welding settings for your thickness and weather window, plus trial-seam practice before production welding.

Seam testing routine

Air-channel testing for dual-track seams and vacuum box checks for repairs — with the acceptance criteria written out.

On-site roll storage

How to stack, shade and handle rolls so they arrive at the trench in the same state they left our factory. Read the storage guide

Packed to Survive a Month at Sea

A damaged roll edge can write off hundreds of metres of liner. Our packing routine exists so you never see one.

Core strength10 mm+ reinforced cores, no collapse in transit
WrappingTriple-layer protective wrap per roll
Loading evidenceContainer report with photos and seal numbers
Load planning20GP / 40HQ plan agreed before production
Standard lead time7–15 days
Custom sizes15–25 days
Trial orderFrom 1–3 tonnes
Jinseed geomembrane factory building exterior

Send Your Spec, Get a Full Answer

No forms, no waiting for a sales rep to "check with the factory". You write to the factory.

Tell us the job

Application, thickness, surface type, quantity and destination port. A rough drawing is enough.

We confirm the fit

Product, width and availability confirmed by the people who run the lines — with alternatives if something fits better.

Quotation with documents

Price, lead time, packing plan and the test documents for your project file, in one reply.

Production to loading

Your rolls are produced, batch-tested and loaded — with photos and seal numbers before the container closes.

Start on WhatsApp Send Spec by Email

Worth Reading Before You Decide

Three short guides our engineers point buyers to most often.

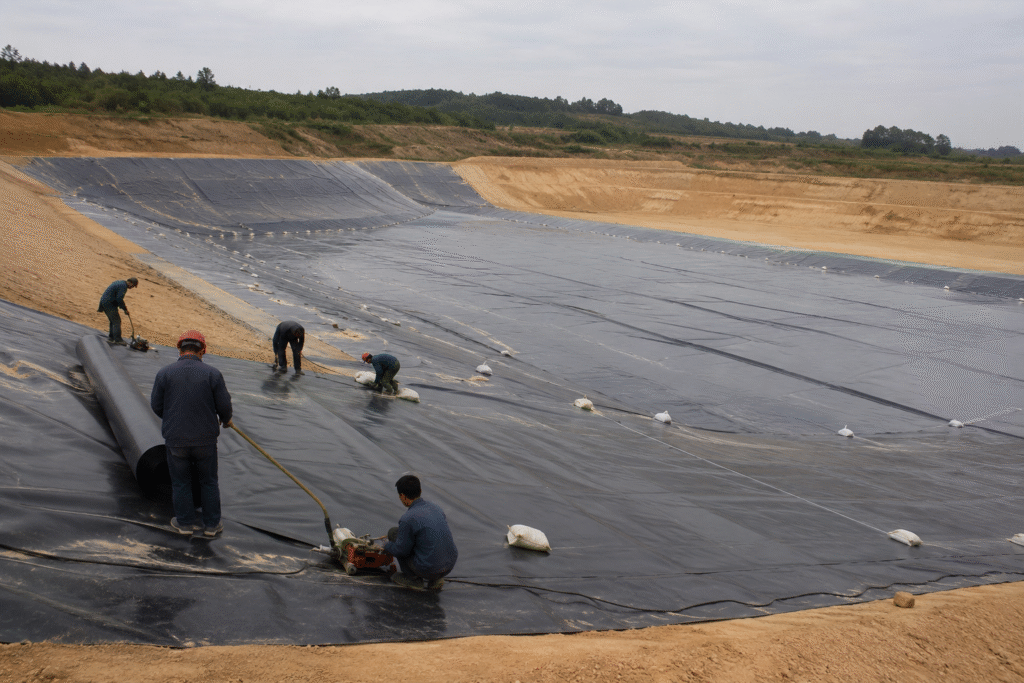

Crew unrolling HDPE geomembrane panels on a large containment site

What Determines HDPE Liner Cost

Thickness, roll dimensions, freight and installation — the four levers that actually move a liner budget.

Read the guide

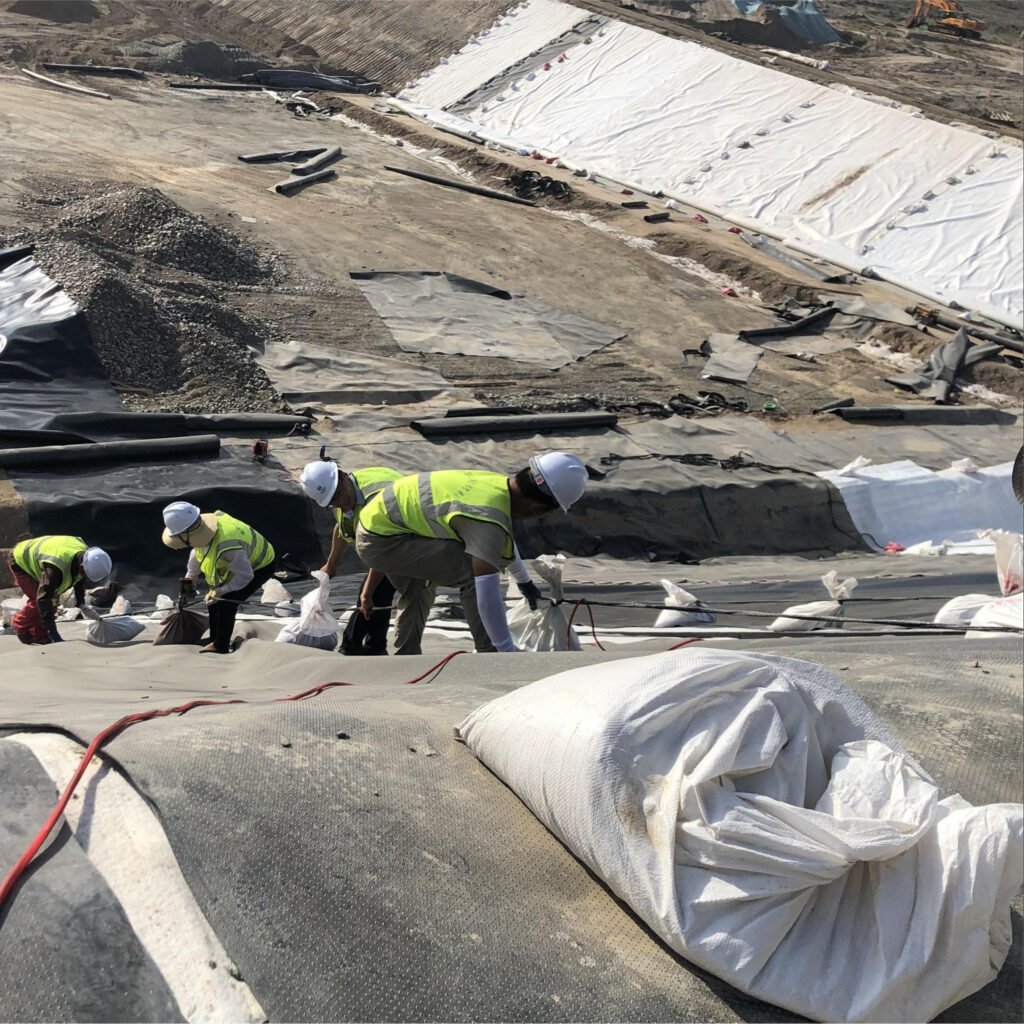

Workers positioning geomembrane panels on a tailings facility slope

Smooth vs Textured: Picking the Right Surface

Friction angle, slope length and welding access — how to choose without over-specifying.

Read the comparison
Hot-wedge welding machine seaming two HDPE geomembrane panels

Welding & Seaming Techniques

Hot-wedge vs extrusion welding, and the seam tests that catch problems before the soil goes back.

Read the techniques

Questions Buyers Usually Ask

How do I choose between smooth and textured HDPE?

Use smooth on flat or gentle areas — it welds and tests easily. Use textured on slopes where the liner must grip the soil or the layers above and below it. Send us your slope details and we will confirm which surface fits.

Which resin do you use?

Virgin geomembrane-grade HDPE from Sabic, Chevron Phillips and Borealis. Every resin batch comes with a certificate of analysis, and we share it with your order.

Can I get test reports for my actual order?

Yes. Each production batch is tested in our own lab, and TRI Environmental independently tests against applicable GRI GM13 requirements. BTTG sampling can be arranged on request.

How long does an HDPE liner last?

Buried and correctly installed, HDPE geomembrane is generally rated for a service life of 50 years or more. Warranty terms run from 10 to 20 years depending on the product and application.

What is your minimum order and lead time?

Trial orders start from 1 to 3 tonnes, and a 20GP container is the most economical starting point. Standard production takes 7 to 15 days; custom thicknesses or roll sizes take 15 to 25 days.

Do you help with installation?

Every order ships with an installation and welding guide, welding parameters for your thickness, and seam testing instructions with acceptance criteria. Tell us your crew's experience level and we will adjust the guidance.

Who You Are Buying From

Jinseed Geosynthetics Solution is a manufacturer, not a trading company. The team answering your enquiry sits in the same group that runs the production lines.

Jinseed team at the International Geosynthetics Society exhibition booth
Manufacturing experience15+ years in geosynthetics
Head office182 Cecil Street, Frasers Tower L17, Singapore
FactoryZhaoqing High-tech Industrial Development Zone, Guangdong
Annual sales volume30 million+ m² supplied per year
Industry membershipIGS Corporate Member

Walk through the plant on the factory page or read the company story on about us.

Get a Quote for Your Project

Send your application, thickness, surface type, quantity and destination port. We reply with a full quotation, lead time and the documents your project file needs.
