Landfill Base Liner Support for Leachate Control and Waste Containment
Jinseed supplies HDPE geomembrane and geotextile materials for landfill liner system construction, including base liners, side slopes, leachate control, puncture protection, and project documentation support.
Landfill Cells Need More Than a Single Sheet of Liner
A landfill liner system must control leachate migration, support waste loading, protect the geomembrane from puncture, and remain compatible with the drainage and collection layers specified by the project designer.
- Leachate can migrate toward soil and groundwater if the barrier layer, seams, or penetrations are not controlled correctly.
- Waste load, cover soil, and equipment movement increase puncture and stress risk during cell operation.
- Side slopes require surface selection, anchoring, and interface review before material confirmation.
- Drainage aggregate, geotextile, and collection pipes must work together to reduce clogging and flow restriction.
Material Support for Landfill Liner System Construction
Landfill projects should start from cell design, leachate condition, side slope geometry, and required documentation. Jinseed supports material selection for the geomembrane barrier and geotextile cushion layers while keeping final engineering approval with the project designer.

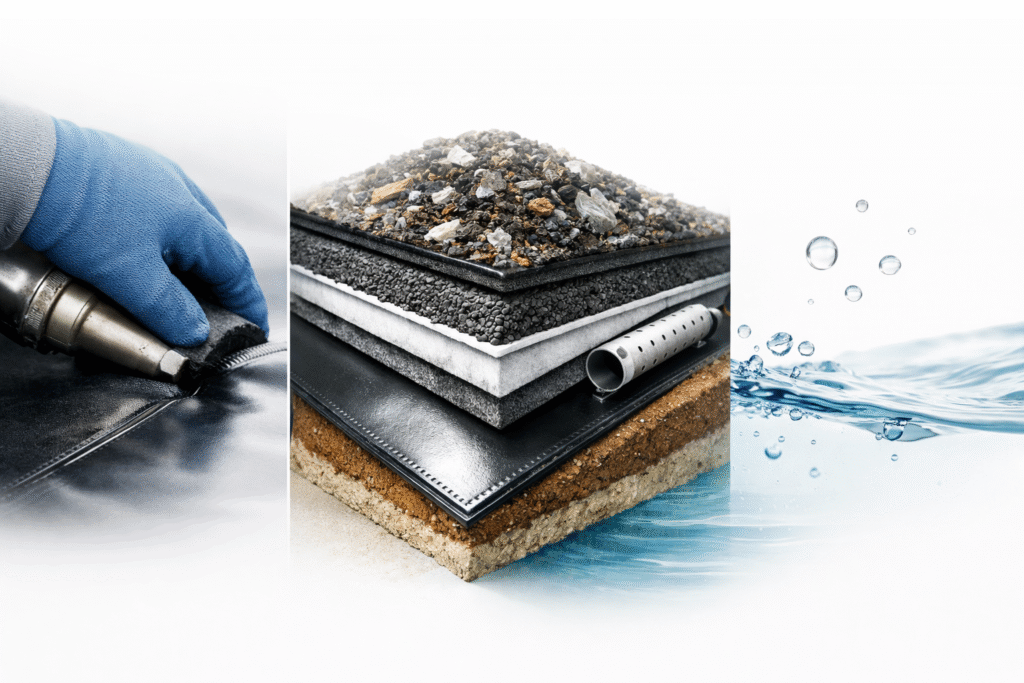

Typical Landfill Liner System Structure
The structure below shows how the main liner materials work within a landfill cell and what each layer is expected to support.
Prepared Subgrade
The subgrade should be compacted, shaped, and cleared of sharp particles before liner deployment. Poor base preparation increases local stress and puncture risk even when the liner material is correctly selected.
HDPE Barrier Liner
The geomembrane forms the primary containment barrier for the landfill cell. Smooth or textured surface selection should follow base area, side slope, cover soil, drainage layer, and interface requirements.
Leachate Collection Zone
The drainage layer and collection pipes help move leachate toward sumps or treatment systems. The liner package should be reviewed together with drainage aggregate, geotextile, pipe spacing, and protection requirements.
Where Landfill Liner Systems Are Used
Different landfill projects share the same containment logic, but their material thickness, cushion layer, drainage arrangement, and documentation requirements should be reviewed separately.

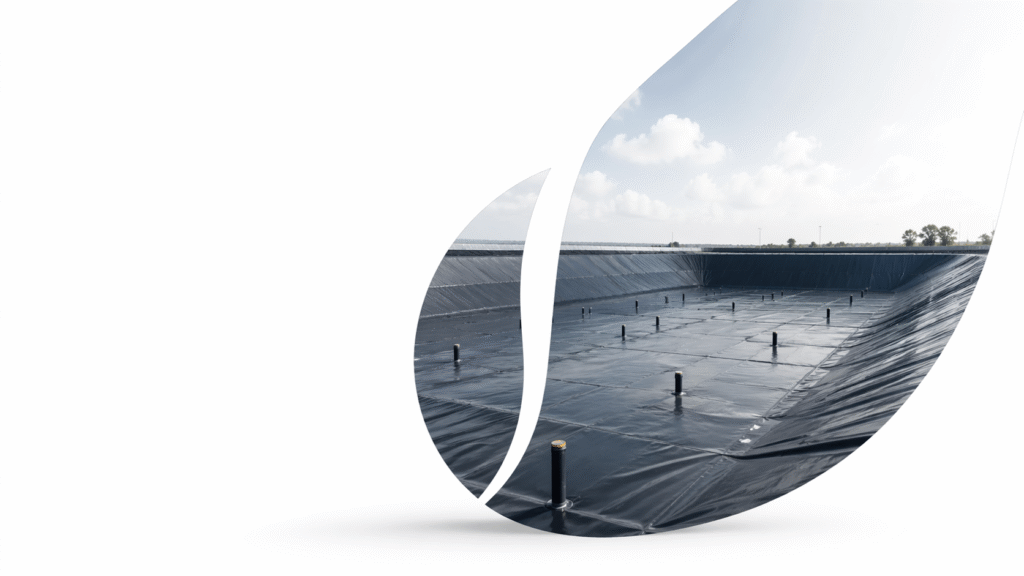

Municipal Solid Waste Cells
Base liner systems for municipal solid waste landfill cells require leachate containment, subgrade preparation, puncture protection, and traceable roll documentation before installation and covering.
Industrial Waste Containment
Industrial landfill cells may require closer review of leachate chemistry, operating temperature, liner thickness, cushion layer weight, and project-specific test documentation.
Controlled Waste Cells
For higher-risk waste containment, material confirmation should follow engineering specifications and local regulatory requirements. Jinseed supports material documents, traceability, and roll-level test records.
Landfill Liner Material Review Points
The following table is a procurement reference for discussion. Final values should follow the project specification, drawings, design engineer requirements, and local approval process.
| Review Item | Typical Landfill Concern | Material Direction | Document Support |
|---|---|---|---|
| Base liner thickness | Leachate containment and puncture resistance | HDPE geomembrane selected by design specification | TDS / roll test report |
| Side slope surface | Interface friction and cover soil stability | Smooth or textured surface based on slope and interface review | Surface type confirmation / test reference |
| Geotextile cushion | Protection against subgrade and drainage aggregate | PET non-woven geotextile weight selected by puncture risk | Geotextile TDS / packing list |
| Seam control | Leakage risk at overlap, repair, and detail areas | Panel layout and welding method confirmed before installation | Welding record / seam test record |
| Traceability | Phased cell construction and material acceptance | Roll numbers matched with production and shipment records | COC / roll labels / loading list |
| Leachate compatibility | Waste type, leachate chemistry, and long-term exposure | Material selection reviewed against project data | Project review notes / test reports |
Information Needed Before Landfill Liner Selection
Before quotation, landfill liner selection should be based on cell geometry, slope condition, leachate exposure, drainage design, and required documentation.
Documents Commonly Requested for Landfill Projects
Landfill liner procurement often requires material evidence before acceptance. Jinseed can prepare documents based on the supplied material, agreed standard, and production batch.
Technical Data Sheet
Material properties, thickness, surface type, and key test method references for engineering review.
Roll Test Report
Batch-level or roll-level test evidence prepared according to the agreed quality requirements.
Certificate of Conformance
A supply document confirming the product delivered against the agreed purchase specification.
Traceability Records
Roll numbers, packing details, and shipment references for phased landfill cell construction.
Landfill Liner Materials Jinseed Can Supply
The material package should match the project design and the required barrier, slope, cushion, drainage, and protection functions.
HDPE Geomembrane
Used as the main barrier layer for landfill base areas and side slopes. Thickness and surface finish should follow drawings and design requirements.

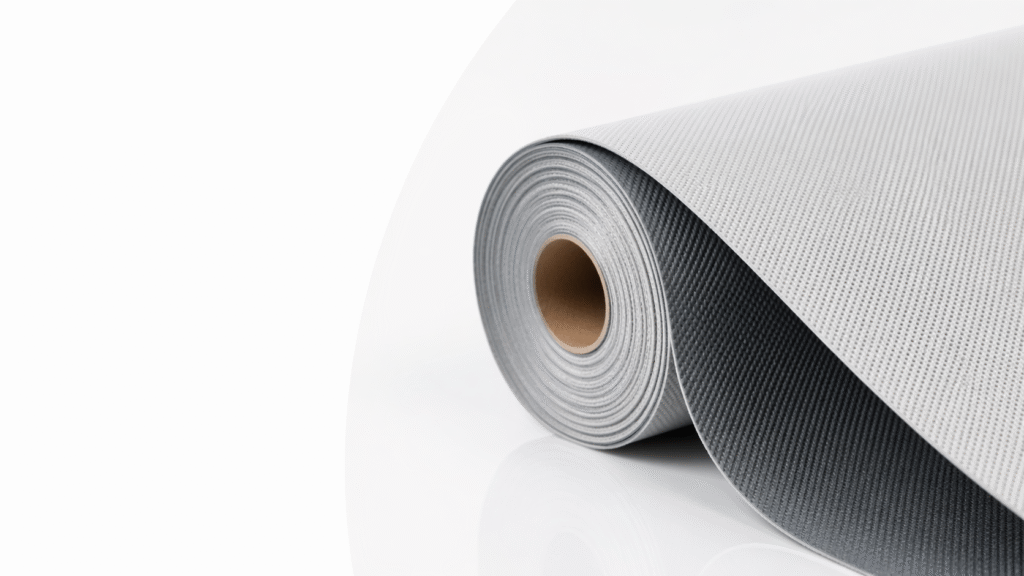

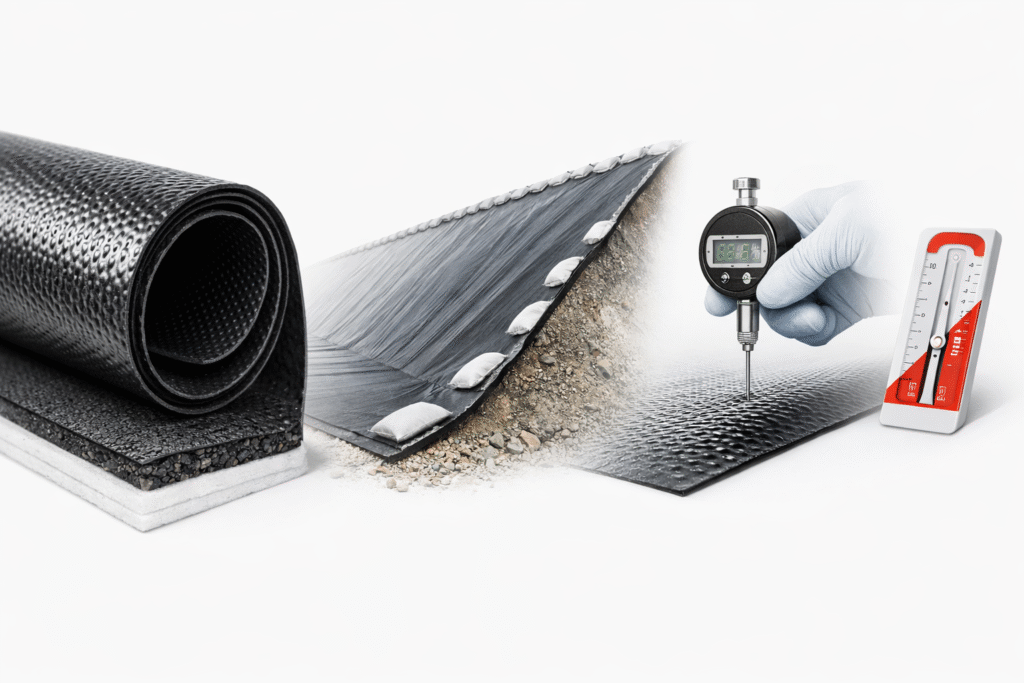

Textured Geomembrane
Considered for landfill side slopes or cover soil interfaces where additional friction review is required. Interface results are project-specific.
Non-Woven Geotextile
Used as a cushion or separation layer to reduce puncture risk from subgrade irregularity, drainage aggregate, or cover material contact.
Support Focused on Landfill Procurement
The goal is not to sell one generic liner. It is to help buyers confirm the correct landfill material package before production, delivery, and installation planning.
Specification Review
We review drawings, required thickness, surface finish, geotextile weight, and documentation needs before confirming a quotation.
Material Matching
HDPE, textured surface, and geotextile cushion recommendations are linked to landfill cell conditions and project requirements.
Quality Records
Roll data, test reports, and conformance documents can be prepared to support project acceptance and traceability.
Shipping Planning
Roll width, roll length, packing method, and container loading can be coordinated for phased landfill construction schedules.
From Subgrade Preparation to Covered Liner Acceptance
Landfill liner installation must be planned before rolls arrive on site. Base preparation, panel layout, anchor trench details, welding sequence, and protection before waste placement all affect liner performance.
Send Your Landfill Cell Layout Before Final Material Selection
For a useful quotation, provide base area, side slope ratio, required thickness, geotextile requirement, leachate information, and document requirements. We will review the material package before production confirmation.
Landfill Liner System Questions
The answers below cover common questions about landfill liner materials, slope applications, protection layers, documentation, and quotation data.
What is the main function of a landfill liner system?
Is HDPE geomembrane always used as the landfill barrier layer?
When should textured geomembrane be considered?
Why is geotextile used with landfill geomembrane?
What project data should be provided before quotation?
Can Jinseed provide roll-level test reports?
Who should approve the final landfill liner design?
Can smooth and textured geomembranes be used in the same landfill cell?
Prepare Your Landfill Liner Material Package
Send your landfill cell layout, required thickness, side slope details, and documentation requirements. Jinseed will help review the geomembrane and geotextile material package before quotation.
